SCADA Platform

Our star product is a SCADA platform for production monitoring. With well over one million hours in the field, it's ready for your next project.

Key features:
  • Modern embedded Linux platform
  • -40 to 75 degC
  • VFD display & keypad option
  • Modular design
  • A single unit can manage up to three Panex / Ranger TEC lines and dozens of downhole gauges

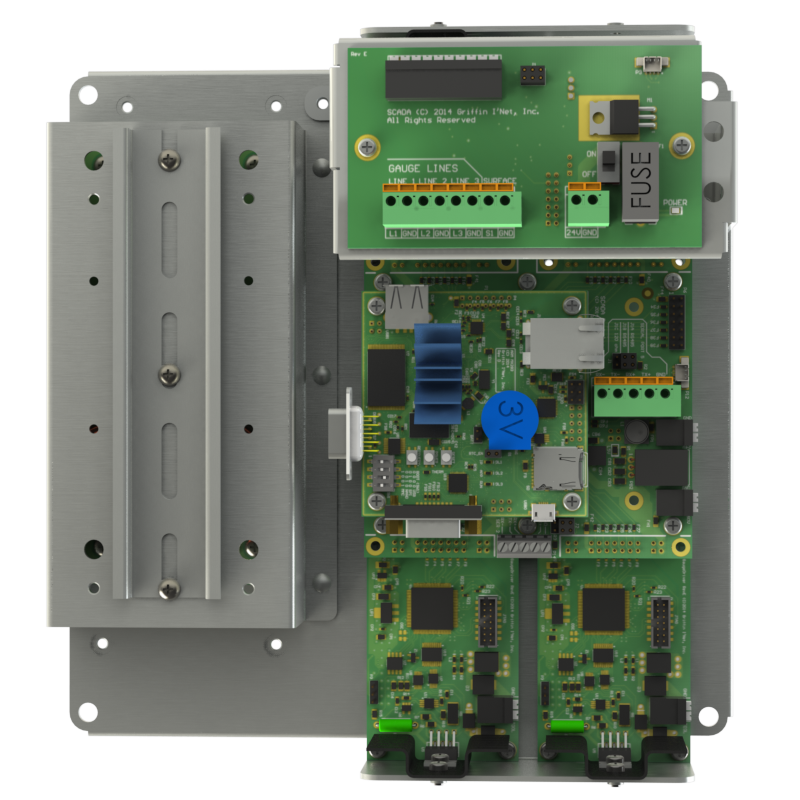

Base system:
  • 454MHz ARM CPU
  • 128MB RAM
  • 512MB FLASH
  • MMC/SD card slot
  • 10/100 Ethernet port
  • 1 USB host port
  • 1 USB host/device port (OTG)
  • 4 RS232/RS422/RS485 serial ports
  • 4 expansion slots standard

Supported downhole hardware:
  • Panex / Ranger digitally addressable gauges
  • Ranger digitally addressable valves
  • GeoPSI gauges (with GeoPSI G6 interface card)

Supported surface hardware:
  • 4-20 ma pressure gauges (with D5251 4-input module)
  • Battery monitor (using Morningstar RD-1 module)
